P-7 M | Modular Acoustic Diffuser


Ceiling diffusion is a must-have in any theater installation. In a theater, we use diffusion on the ceiling and rear wall. Diffusion on the ceiling, makes the ceiling sound like it is much farther away. Diffusion on the rear wall makes the rear wall sound farther away than it is. Both ceiling and rear wall diffusion make the room sound larger than its physical dimensions. Everyone wants their rooms to sound larger than they actually are.

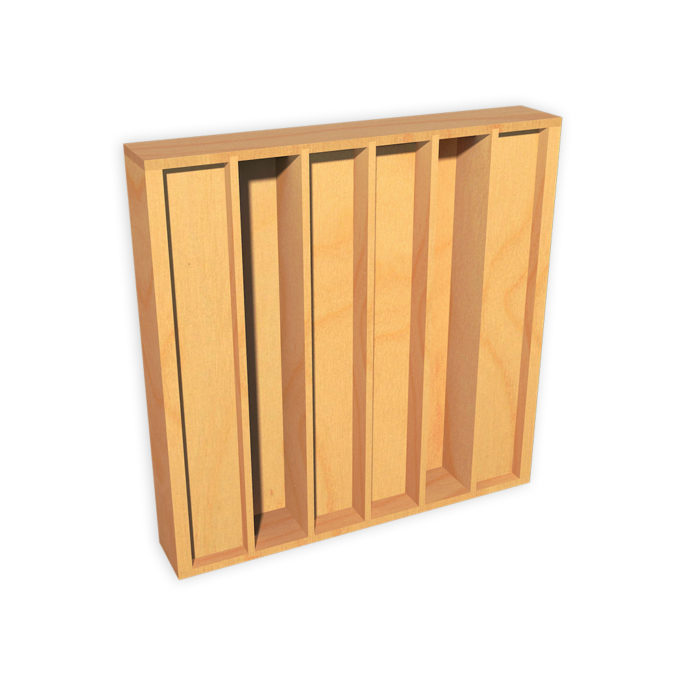

We offer 3 prime numbers of quadratic diffusion to use in theater, listening, studios, live rooms, and even vocal rooms. Quadratic diffusion is the only true diffusion system that satisfies all of the criteria for a diffuse sound field. Our P-7 M unit is the most economical of all of the 3 prime numbers we use. It diffusers energy from 850 Hz. – 3,450 Hz. It is 24″ x 24″ x 4 1/2″ high. Three wood types are available using maple, cherry, and walnut. Units weigh 20 lbs.

They can be installed in a drop ceiling system that has been re-engineered to handle the additional load. Units can be installed directly against existing surface areas by gluing or using hardware attachment methods. When installing in a ceiling system we look for 100% coverage of the ceiling with diffusion. This coverage can be adjusted to meet physical space and budget requirements.

Request Quote

These units have special handling and shipping requirements, due to their weight and size. Please call us on 520-392-9486 or click HERE to contact us so we can assist you further.
